HCN 0512 wheel loader attachment hydraulic tree shear

FOB Reference Price:Get Latest Price
$3,000.00 - $3,900.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Dimension(Long * Breadth * High):
2300*895*1455mm
Condition:
New
Brand Name:
hcn
Place of Origin:
Jiangsu, China
Type:
loader attachments
Moving Type:
hydraulic control
Rated Load:
840kg
Certification:
GOST/ISO
Model Number:
0512 tree shear cutter
Dimension:
2300*895*1455mm
weigth:
840 kg
cutting diameter:
0-400mm
working flow:
80-140 L/min
working pressure:
16-21 Mpa
After-sales Service Provided:
No overseas service provided
Warranty:
1000 Working Hours Whichever
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
iron frame
Port
any chinese port
Lead Time :
Shipped in 20 days after payment
Product Description

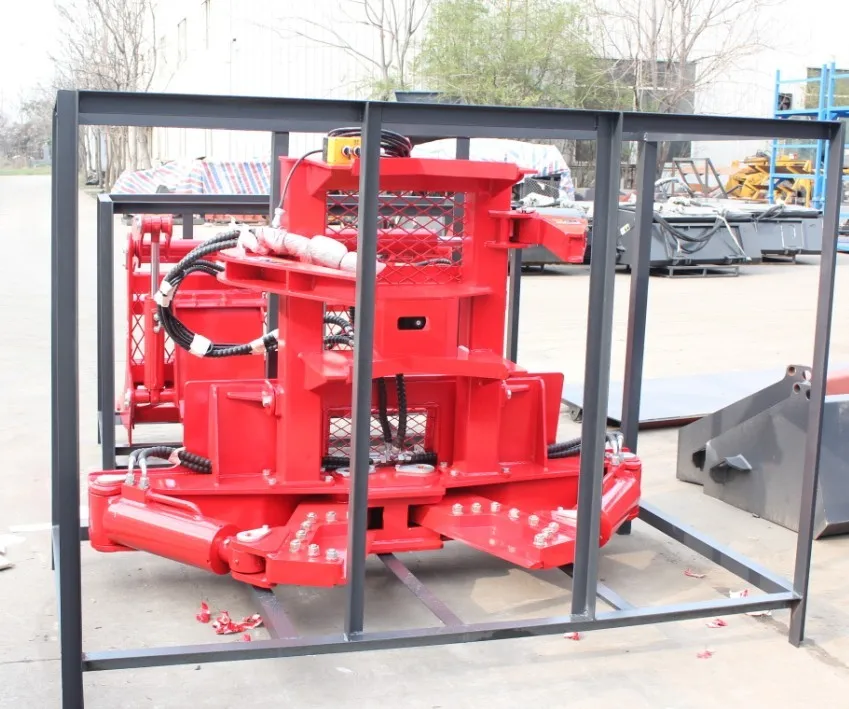

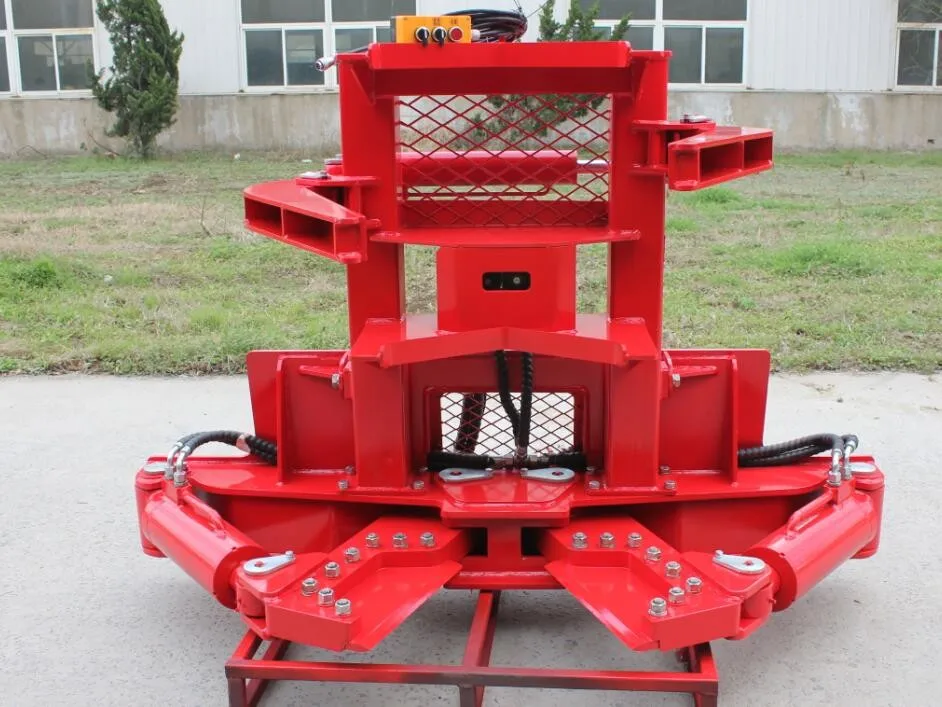

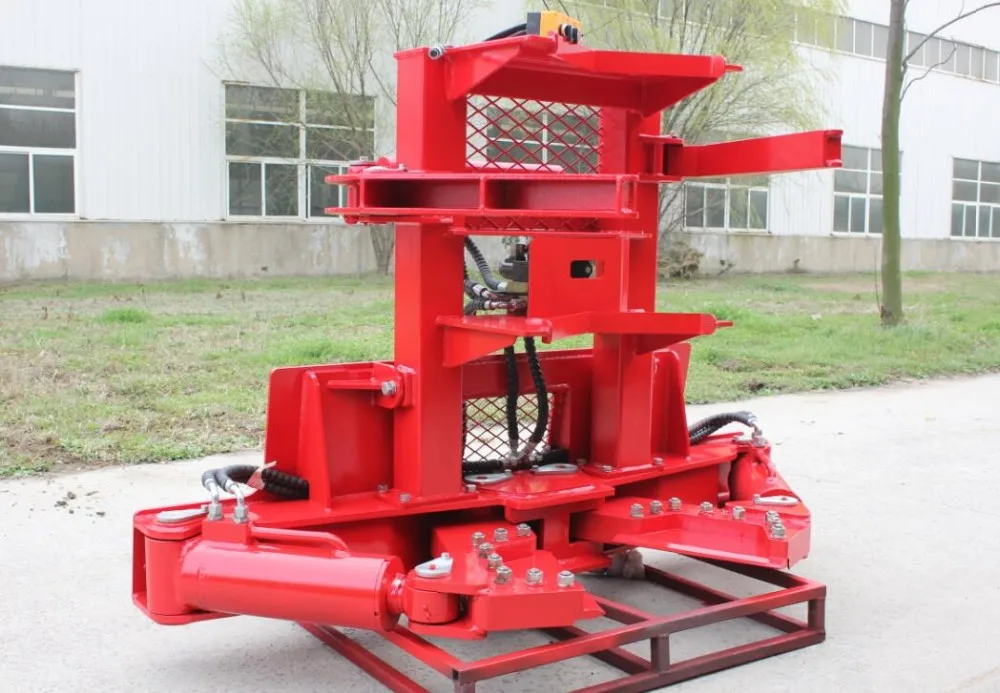

               HCN 0512 backhoe loader/skidsteer loader/ excavator tree shear cutter attachment

We supple skid steer loader attachments, wheel loader attachments and excavator attachments,

Welcome your questions/quotation to my email below, or contact me by whatsapp/wechat:

+86-18652211758


Product Application

The shear shape equipped blades driven by a pair of hydraulic cylinder to finish shearing action, and cut off the tree trunk. The proper tree dia. is 0-400mm. This tree shear attachment is suitable is skid steer loader, wheel loader, excavator etc.
Tree Shear for skid steer loaders is the ideal tool for general land clearing.Tree Shears are available with two different styles of shear arms.

Product Features:

1.Designed for general land clearing where materials are no more than 14 inches in diameter, Tree Shears feature solid cast shearing arms that deliver 60% stronger performance compared to competing products.
2.Tree Shears are available with two different styles of shear arms. These are the standard arm and extended arm design.
3.Equipped with guarded hard line to improve hose protection from abusive elements.
4.Options include pushbar, brushguard, single arm grapple.
5.Optional 5 gallon sprayer kit system available to prevent regrowth.
6.Tree shears are provided with standard flow flat face couplings.

 Specification of HCN 0512 tree shear attachment
Model
051212
051216
Overall Width (mm)
1900
2300
Overall Height (mm)
1255
1455
Overall Length (mm)
860
895
Tree Shear Dia.(mm)
300
400
Overall Weight(kg)
740
840
Suitable Pressure(MPa)
16~21
16~21
Suitable Flow(L/min)
50~120
80~140

Suit for Machines:

1. Skid steer loaders with Universal Mounting Quick Attach (Most brands of skid steers' qucik attach are Universal).

2. Small excavators with Auxiliary hydraulics

3. Backhoe Loaders with Auxiliary hydraulics

4. Tractor with Auxiliary Hydraulics

5. Telehandlers with Auxiliary Hydraulics

6. Small Wheel Loaders with Auxiliary Hydraulics

Relative Products
Our Workshop


We started from year 2006


We have professional working team: design department, manufacting workshop, sales department



Advanced production tools, professional production process.


Our attachments export to many countries such as: Australia, Agentina, Canada, Brazil, Maylasia, Singapore etc.
